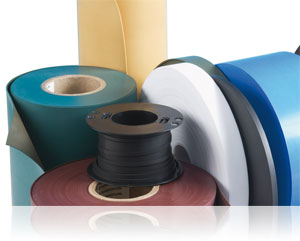

Compounded PTFE Skived Tapes Etched and Unetched

Directly from Industrial Plastics & Machine R&D Department, these materials are recognised worldwide for their quality and high performance.
The very special ﬁllers and the technologies used to process etched compounded tapes, enhance the following properties:

low friction coefﬁcient
hardness and wear strength
extremely high service temperature
high resistance under pressure
extreme longevity therefore resulting in low operating costs

Thanks to the etching treatment, Industrial Plastics & Machine tapes can be adhered to plastic, metal, rubber surfaces, widening the range of potential applications. A chart of the most common applications is displayed on the following page.

Industrial Plastics & Machine PTFE TAPES

MILLING MACHINES

MACHINES CENTRES

DRILLING MACHINES

GRINDING MACHINES

LATHES

SAWS

OTHER MACHINE TOOLS AND ACCESSORIES

BRIDGE SUPPORTS

SKIDS

CONSTRUCTION ENGINEERING

WEAR STRIPS

MAINTENANCE

Skived tapes PTFE

If you need to skive very thin thickness and/or special compound, only the most updated technologies, the most selected raw materials and a skilful know-how can grant excellent and stable quality. Industrial Plastics & Machine have all of the above capabilities and presently able to offer very high quality products starting from the thickness of 0,025 mm. Some of Industrial Plastics & Machine tapes applications are for the aerospace or electronics, a technological reference for quality and reliability. Industrial Plastics & Machine tapes are available in virgin PTFE or ﬁlled by bronze, carbon, glass ﬁber and other special materials, able to cover a very wide range of different industrial applications.

Etching process available on 1 or 2 sides.

Skived Tapes G400 e G200

Compounded PTFE Skived Tapes

Skived Tapes G400 e G200

PRODUCTIVE CAPABILITY

Skived Tapes G400

Thickness Inc. "	Tolerance Inc. "	Width Inc"
0.002"	+ 0.0004"	From 0.5" up to 60" wide
0.003"	+ 0.0004"	From 0.5" up to 60" wide
0.004"	+ 0.0004"	From 0.5" up to 60" wide
0.005"	+ 0.0004"	From 0.5" up to 60" wide
0.008"	+ 0.0007"	From 0.5" up to 60" wide
0.010"	+ 0.0008"	From 0.5" up to 60" wide
0.015"	+ 0.0012"	From 0.5" up to 60" wide
0.020"	+ 0.0013"	From 0.5" up to 60" wide
0.025"	+ 0.0014"	From 0.5" up to 60" wide
0.031" (1/32")	+ 0.0015"	From 0.5" up to 60" wide
0.062" (1/16")	+ 0.0039"	From 0.5" up to 60" wide
0.093" (3/32")	+ 0.0079"	From 0.5" up to 60" wide
0.125" (1/8")	+ 0.0120"	From 0.5" up to 60" wide
0.187" (3/16")	+ 0.0160"	From 0.5" up to 60" wide
0.250" (1/4")	+ 0.0200"	From 0.5" up to 60" wide

Skived Tapes G200

Thickness Inc. "	Tolerance Inc. "	Width Inc"
0.025"	+ 0.0014"	From 0.5" up to 60" wide
0.031" (1/32")	+ 0.0015"	From 0.5" up to 60" wide
0.062" (1/16")	+ 0.0039"	From 0.5" up to 60" wide
0.093" (3/32")	+ 0.0079"	From 0.5" up to 60" wide
0.125" (1/8")	+ 0.0120"	From 0.5" up to 60" wide
0.187" (3/16")	+ 0.0160"	From 0.5" up to 60" wide
0.250" (1/4")	+ 0.0200"	From 0.5" up to 60" wide

PTFE Special Compound

Compounded PTFE Skived Tapes Etched and Unetched

Skived tapes PTFE

Skived Tapes G400 e G200

PRODUCTIVE CAPABILITY

Skived Tapes G400

Skived Tapes G200
